Navigating the MAZE: Tactics, Techniques and Procedures Associated With MAZE Ransomware Incidents

Targeted ransomware incidents have brought a threat of disruptive and
destructive attacks to organizations across industries and
geographies. FireEye Mandiant
Threat Intelligence has previously documented this threat in our
investigations of trends
across ransomware incidents, FIN6
activity, implications
for OT networks, and other aspects of post-compromise ransomware
deployment. Since November 2019, we’ve seen the MAZE ransomware being
used in attacks that combine targeted ransomware use, public exposure
of victim data, and an affiliate model.

Malicious actors have been actively deploying MAZE ransomware since
at least May 2019. The ransomware was initially distributed via spam
emails and exploit kits before later shifting to being deployed
post-compromise. Multiple actors are involved in MAZE ransomware
operations, based on our observations of alleged users in underground
forums and distinct tactics, techniques, and procedures across
Mandiant incident response engagements. Actors behind MAZE also
maintain a public-facing website where they post data stolen from
victims who refuse to pay an extortion fee.

The combination of these two damaging intrusion outcomes—dumping
sensitive data and disrupting enterprise networks—with a criminal
service makes MAZE a notable threat to many organizations. This blog
post is based on information derived from numerous Mandiant incident
response engagements and our own research into the MAZE ecosystem and operations.

Mandiant Threat Intelligence will be available to answer questions
on the MAZE
ransomware threat in a May 21 webinar.

Victimology

We are aware of more than 100 alleged MAZE victims reported by
various media outlets and on the MAZE website since November 2019.
These organizations have been primarily based in North America,
although victims spanned nearly every geographical region. Nearly
every industry sector including manufacturing, legal, financial
services, construction, healthcare, technology, retail, and government
has been impacted demonstrating that indiscriminate nature of these
operations (Figure 1).

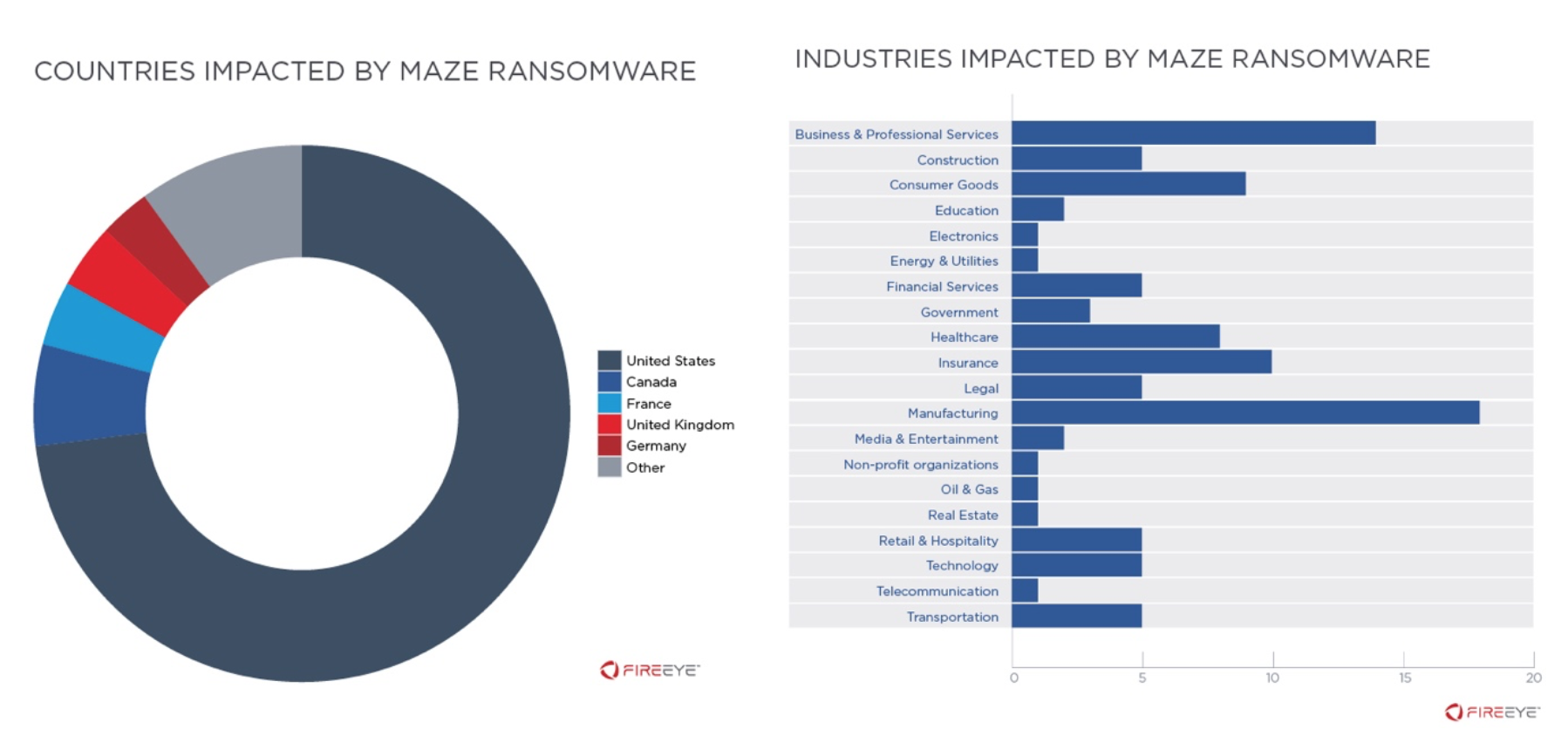

Figure 1: Geographical and industry
distribution of alleged MAZE victims

Multiple Actors Involved in MAZE Ransomware Operations Identified

Mandiant identified multiple Russian-speaking actors who claimed to
use MAZE ransomware and were seeking partners to fulfill different
functional roles within their teams. Additional information on these
actors is available to Mandiant
Intelligence subscribers. A panel used to manage victims
targeted for MAZE ransomware deployment has a section for affiliate
transactions. This activity is consistent with our assessment that
MAZE operates under an affiliate model and is not distributed by a
single group. Under this business model, ransomware developers will
partner with other actors (i.e. affiliates) who are responsible for
distributing the malware. In these scenarios, when a victim pays the
ransom demand, the ransomware developers receive a commission. Direct
affiliates of MAZE ransomware also partner with other actors who
perform specific tasks for a percentage of the ransom payment. This
includes partners who provide initial access to organizations and
pentesters who are responsible for reconnaissance, privilege
escalation and lateral movement—each of which who appear to work on a
percentage-basis. Notably, in some cases, actors may be hired on a
salary basis (vs commission) to perform specific tasks such as
determining the victim organization and its annual revenues. This
allows for specialization within the cyber criminal ecosystem,
ultimately increasing efficiency, while still allowing all parties
involved to profit.

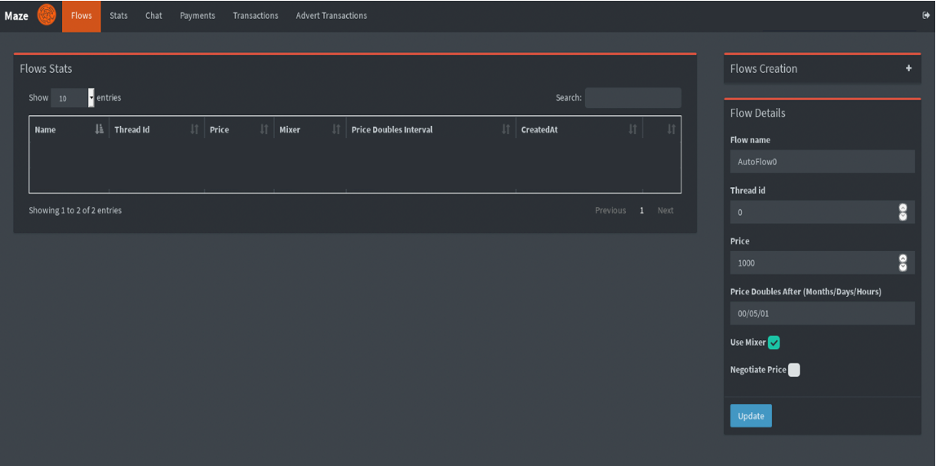

Figure 2: MAZE ransomware panel

MAZE Initially Distributed via Exploit Kits and Spam Campaigns

MAZE ransomware was initially distributed directly via exploit
kits and spam
campaigns through late 2019. For example, in November 2019,
Mandiant observed multiple email campaigns delivering Maze ransomware
primarily to individuals at organizations in Germany and the United
States, although a significant number of emails were also delivered to
entities in Canada, Italy, and South Korea. These emails used tax,
invoice, and package delivery themes with document attachments or
inline links to documents which download and execute Maze ransomware.

On November 6 and 7, a Maze campaign targeting Germany delivered
macro-laden documents using the subject lines “Wichtige informationen
uber Steuerruckerstattung” and “1&1 Internet AG – Ihre Rechnung
19340003422 vom 07.11.19” (Figure 3). Recipients included individuals
at organizations in a wide range of industries, with the Financial
Services, Healthcare, and Manufacturing sectors being targeted most
frequently. These emails were sent using a number of malicious domains
created with the registrant address gladkoff1991@yandex.ru.

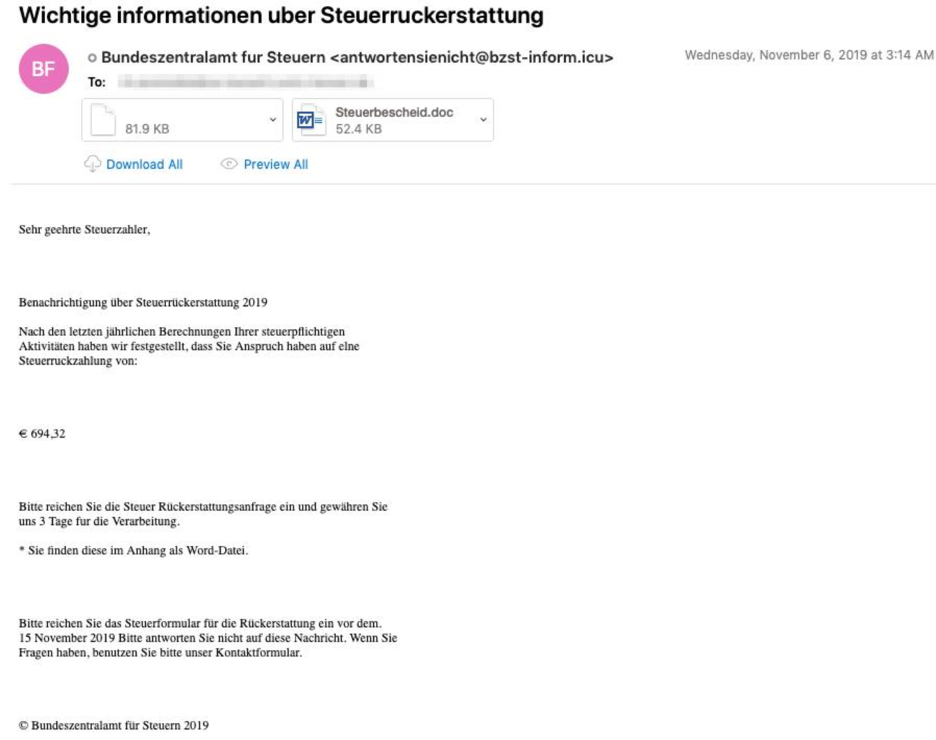

Figure 3: German-language lure

On November 8, a campaign delivered Maze primarily to Financial
Services and Insurance organizations located in the United states.
These emails originated from a compromised or spoofed account and
contained an inline link to download a Maze executable payload.

On November 18 and 19, a Maze campaign targeted individuals
operating in a range of industries in the United States and Canada
with macro documents using phone bill and package delivery themes
(Figure 4 and Figure 5). These emails used the subjects “Missed
package delivery” and “Your AT&T wireless bill is ready to
view” and were sent using a number of malicious domains with the
registrant address abusereceive@hitler.rocks. Notably, this registrant
address was also used to create multiple Italian-language domains
towards the end of November 2019.

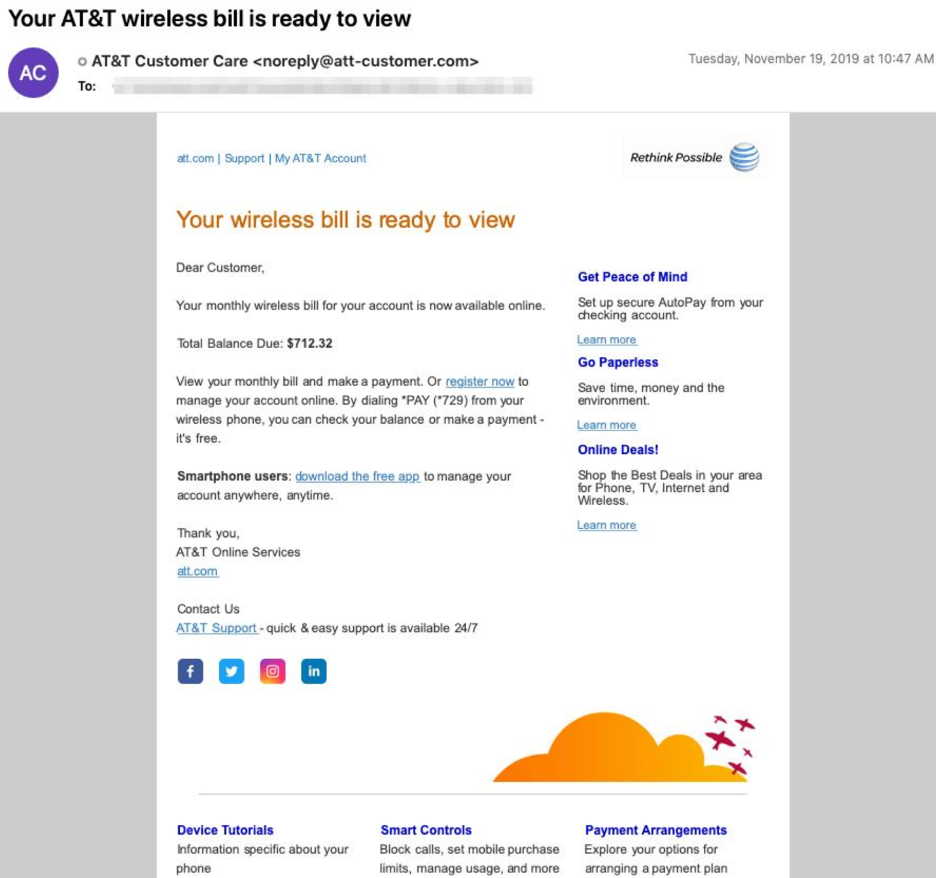

Figure 4: AT&T email lure

Figure 5: Canada Post email lure

Shift to Post-Compromise Distribution Maximizes Impact

Actors using MAZE have increasingly shifted to deploying the
ransomware post-compromise. This methodology provides an opportunity
to infect more hosts within a victim’s environment and exfiltrate
data, which is leveraged to apply additional pressure on organizations
to pay extortion fees. Notably, in at least some cases, the actors
behind these operations charge an additional fee, in addition to the
decryption key, for the non-release of stolen data.

Although the high-level intrusion scenarios preceding the
distribution of MAZE ransomware are broadly similar, there have been
notable variations across intrusions that suggest attribution to
distinct teams. Even within these teams, the cyber criminals appear to
be task-oriented meaning that one operator is not responsible for the
full lifecycle. The following sections highlight the TTPs seen in a
subset of incidents and serve to illustrate the divergence that may
occur due to the fact that numerous, disparate actors are involved in
different phases of these operations. Notably, the time between
initial compromise to encryption has also been widely varied, from
weeks to many months.

Initial Compromise

There are few clear patterns for intrusion vector across analyzed
MAZE ransomware incidents. This is consistent with our observations of
multiple actors who use MAZE soliciting partners with network access.
The following are a sample of observations from several Mandiant
incident response engagements:

• A user downloaded a malicious resume-themed Microsoft Word
  document that contained macros which launched an IcedID payload,
  which was ultimately used to execute an instance of BEACON.
• An actor logged into an internet-facing system via RDP. The
  account used to grant initial access was a generic support account.
  It is unclear how the actor obtained the account’s password.
• An actor exploited a misconfiguration on an Internet-facing
  system. This access enabled the actor to deploy tools to pivot into
  the internal network.
• An actor logged into a Citrix web
  portal account with a weak password. This authenticated access
  enabled the actor to launch a Meterpreter payload on an internal
  system.

Establish Foothold & Maintain Presence

The use of legitimate credentials and broad distribution of BEACON
across victim environments appear to be consistent approaches used by
actors to establish their foothold in victim networks and to maintain
presence as they look to meet their ultimate objective of deploying
MAZE ransomware. Despite these commonplace behaviors, we have observed
an actor create their own domain account to enable latter-stage operations.

• Across multiple incidents, threat actors deploying MAZE
  established a foothold in victim environments by installing BEACON
  payloads on many servers and workstations.
• Web shells were
  deployed to an internet-facing system. The system level access
  granted by these web shells was used to enable initial privilege
  escalation and the execution of a backdoor.
• Intrusion
  operators regularly obtained and maintained access to multiple
  domain and local system accounts with varying permissions that were
  used throughout their operations.
• An actor created a new
  domain account and added it to the domain administrators group.

Escalate Privileges

Although Mandiant has observed multiple cases where MAZE intrusion
operators employed Mimikatz to collect credentials to enable privilege
escalation, these efforts have also been bolstered in multiple cases
via use of Bloodhound, and more manual searches for files containing credentials.

• Less than two weeks after initial access, the actor downloaded
  and interacted with an archive named mimi.zip, which
  contained files corresponding to the credential harvesting tool
  Mimikatz. In the following days the same mimi.zip archive was
  identified on two domain controllers in the impacted
  environment.
• The actor attempted to find files with the word
  “password” within the environment. Additionally, several archive
  files were also created with file names suggestive of credential
  harvesting activity.
• The actor attempted to identify hosts
  running the KeePass password safe software.
• Across multiple
  incidents, the Bloodhound utility was used, presumably to assess
  possible methods of obtaining credentials with domain administrator
  privileges.
• Actors primarily used Procdump and Mimikatz to
  collect credentials used to enable later stages of their intrusion.
  Notably, both Bloodhound and PingCastle were also used, presumably
  to enable attackers’ efforts to understand the impacted
  organization’s Active Directory configuration. In this case the
  responsible actors also attempted to exfiltrate collected
  credentials to multiple different cloud file storage services.

Reconnaissance

Mandiant has observed a broad range of approaches to network, host,
data, and Active Directory reconnaissance across observed MAZE
incidents. The varied tools and approaches across these incidents
maybe best highlights the divergent ways in which the responsible
actors interact with victim networks.

• In some intrusions, reconnaissance activity occurred within
  three days of gaining initial access to the victim network. The
  responsible actor executed a large number of reconnaissance scripts
  via Cobalt Strike to collect network, host, filesystem, and domain
  related information.
• Multiple built-in Windows commands
  were used to enable network, account, and host reconnaissance of the
  impacted environment, though the actors also supplied and used
  Advanced IP Scanner and Adfind to support this stage of their
  operations.
• Preliminary network reconnaissance has been
  conducted using a batch script named ‘2.bat’ which contained a
  series of nslookup commands. The output of this script was copied
  into a file named ‘2.txt’.
• The actor exfiltrated
  reconnaissance command output data and documents related to the IT
  environment to an attacker-controlled FTP server via an encoded
  PowerShell script.
• Over a period of several days, an actor
  conducted reconnaissance activity using Bloodhound,
  PowerSploit/PowerView (Invoke-ShareFinder), and a reconnaissance
  script designed to enumerate directories across internal hosts.
• An actor employed the adfind tool and a batch script to collect
  information about their network, hosts, domain, and users. The
  output from this batch script (2adfind.bat) was saved into an
  archive named ‘ad.7z’ using an instance of the 7zip archiving
  utility named 7.exe.
• An actor used the tool
  smbtools.exe to assess whether accounts could login to
  systems across the environment.
• An actor collected
  directory listings from file servers across an impacted environment.
  Evidence of data exfiltration was observed approximately one month
  later, suggesting that the creation of these directory listings may
  have been precursor activity, providing the actors with data they
  may have used to identify sensitive data for future
  exfiltration.

Lateral Movement

Across the majority of MAZE ransomware incidents lateral movement
was accomplished via Cobalt Strike BEACON and using previously
harvested credentials. Despite this uniformity, some alternative tools
and approaches were also observed.

• Attackers relied heavily on Cobalt Strike BEACON to move
  laterally across the impacted environment, though they also tunneled
  RDP using the ngrok utility, and employed tscon to hijack legitimate
  rdp sessions to enable both lateral movement and privilege
  escalation.
• The actor moved laterally throughout some
  networks leveraging compromised service and user accounts obtained
  from the system on which they gained their initial foothold. This
  allowed them to obtain immediate access to additional systems.
  Stolen credentials were then used to move laterally across the
  network via RDP and to install BEACON payloads providing the actors
  with access to nearly one hundred hosts.
• An actor moved
  laterally using Metasploit and later deployed a Cobalt Strike
  payload to a system using a local administrator account.
• At
  least one actor attempted to perform lateral movement using
  EternalBlue in early and late 2019; however, there is no evidence
  that these attempts were successful.

Complete Mission

There was evidence suggesting data exfiltration across most analyzed
MAZE ransomware incidents. While malicious actors could monetize
stolen data in various way (e.g. sale in an underground forum, fraud),
actors employing MAZE are known to threaten the release of stolen data
if victim organizations do not pay an extortion fee.

• An actor has been observed exfiltrating data to FTP servers
  using a base64-encoded PowerShell script designed to upload any
  files with .7z file extensions to a predefined FTP server using a
  hard-coded username and password. This script appears to be a slight
  variant of a script first posted to Microsoft TechNet in
  2013.
• A different base64-encoded PowerShell command was also
  used to enable this functionality in a separate incident.
• Actors deploying MAZE ransomware have also used the utility
  WinSCP to exfiltrate data to an attacker-controlled FTP server.
• An actor has been observed employing a file replication utility
  and copying the stolen data to a cloud file hosting/sharing
  service.
• Prior to deploying MAZE ransomware threat actors
  employed the 7zip utility to archive data from across various
  corporate file shares. These archives were then exfiltrated to an
  attacker-controlled server via FTP using the WinSCP utility.

In addition to data theft, actors deploy MAZE ransomware to encrypt
files identified on the victim network. Notably, the aforementioned
MAZE panel has an option to specify the date on which ransom demands
will double, likely to create a sense of urgency to their demands.

• Five days after data was exfiltrated from a victim environment
  the actor copied a MAZE ransomware binary to 15 hosts within the
  victim environment and successfully executed it on a portion of
  these systems.
• Attackers employed batch scripts and a
  series to txt files containing host names to distribute and execute
  MAZE ransomware on many servers and workstations across the victim
  environment.
• An actor deployed MAZE ransomware to tens of
  hosts, explicitly logging into each system using a domain
  administrator account created earlier in the intrusion.
• Immediately following the exfiltration of sensitive data, the
  actors began deployment of MAZE ransomware to hosts across the
  network. In some cases, thousands of hosts were ultimately
  encrypted. The encryption process proceeded as follows:
  • A
    batch script named start.bat was used to execute a series
    of secondary batch scripts with names such as xaa3x.bat
    or xab3x.bat.
  • Each of these batch scripts
    contained a series of commands that employed the copy command,
    WMIC, and PsExec to copy and execute a kill script (windows.bat)
    and an instance of MAZE ransomware (sss.exe) on hosts across the
    impacted environment
  • Notably, forensic analysis of the
    impacted environment revealed MAZE deployment scripts targeting
    ten times as many hosts as were ultimately encrypted.

Implications

Based on our belief that the MAZE ransomware is distributed by
multiple actors, we anticipate that the TTPs used throughout incidents
associated with this ransomware will continue to vary somewhat,
particularly in terms of the initial intrusion vector. For more
comprehensive recommendations for addressing ransomware, please refer
to our Ransomware
Protection and Containment Strategies blog post and the linked
white paper.

Mandiant Security Validation Actions

Organizations can validate their security controls against more than
20 MAZE-specific actions with Mandiant
Security Validation. Please see our Headline Release Content
Updates – April 21, 2020 on the Mandiant Security Validation
Customer Portal for more information.

• A100-877 – Active Directory – BloodHound, CollectionMethod
  All
• A150-006 – Command and Control – BEACON, Check-in
• A101-030 – Command and Control – MAZE Ransomware, C2 Beacon,
  Variant #1
• A101-031 – Command and Control – MAZE
  Ransomware, C2 Beacon, Variant #2
• A101-032 – Command and
  Control – MAZE Ransomware, C2 Beacon, Variant #3
• A100-878 –
  Command and Control – MAZE Ransomware, C2 Check-in
• A100-887
  – Command and Control – MAZE, DNS Query #1
• A100-888 –
  Command and Control – MAZE, DNS Query #2
• A100-889 – Command
  and Control – MAZE, DNS Query #3
• A100-890 –  Command and
  Control – MAZE, DNS Query #4
• A100-891 – Command and Control
  – MAZE, DNS Query #5
• A100-509 – Exploit Kit Activity –
  Fallout Exploit Kit CVE-2018-8174, Github PoC
• A100-339 –
  Exploit Kit Activity – Fallout Exploit Kit CVE-2018-8174, Landing
  Page
• A101-033 – Exploit Kit Activity – Spelevo Exploit Kit,
  MAZE C2
• A100-208 – FTP-based Exfil/Upload of PII Data
  (Various Compression)
• A104-488 – Host CLI – Collection,
  Exfiltration: Active Directory Reconnaissance with SharpHound,
  CollectionMethod All
• A104-046 – Host CLI – Collection,
  Exfiltration: Data from Local Drive using PowerShell
• A104-090 – Host CLI – Collection, Impact: Creation of a Volume
  Shadow Copy
• A104-489 – Host CLI – Collection: Privilege
  Escalation Check with PowerUp, Invoke-AllChecks
• A104-037 –
  Host CLI – Credential Access, Discovery: File & Directory
  Discovery
• A104-052 – Host CLI – Credential Access:
  Mimikatz
• A104-167 – Host CLI – Credential Access: Mimikatz
  (2.1.1)
• A104-490 – Host CLI – Defense Evasion, Discovery:
  Terminate Processes, Malware Analysis Tools
• A104-491 – Host
  CLI – Defense Evasion, Persistence: MAZE, Create Target.lnk
• A104-500 – Host CLI – Discovery, Defense Evasion: Debugger
  Detection
• A104-492 – Host CLI – Discovery, Execution:
  Antivirus Query with WMI, PowerShell
• A104-374 – Host CLI –
  Discovery: Enumerate Active Directory Forests
• A104-493 –
  Host CLI – Discovery: Enumerate Network Shares
• A104-481 –
  Host CLI – Discovery: Language Query Using PowerShell, Current
  User
• A104-482 – Host CLI – Discovery: Language Query Using
  reg query
• A104-494 – Host CLI – Discovery: MAZE, Dropping
  Ransomware Note Burn Directory
• A104-495 – Host CLI –
  Discovery: MAZE, Traversing Directories and Dropping Ransomware
  Note, DECRYPT-FILES.html Variant
• A104-496 – Host CLI –
  Discovery: MAZE, Traversing Directories and Dropping Ransomware
  Note, DECRYPT-FILES.txt Variant
• A104-027 – Host CLI –
  Discovery: Process Discovery
• A104-028 – Host CLI –
  Discovery: Process Discovery with PowerShell
• A104-029 –
  Host CLI – Discovery: Remote System Discovery
• A104-153 –
  Host CLI – Discovery: Security Software Identification with
  Tasklist
• A104-083 – Host CLI – Discovery: System Info
• A104-483 – Host CLI – Exfiltration: PowerShell FTP Upload
• A104-498 – Host CLI – Impact: MAZE, Desktop Wallpaper Ransomware
  Message
• A104-227 – Host CLI – Initial Access, Lateral
  Movement: Replication Through Removable Media
• A100-879 –
  Malicious File Transfer – Adfind.exe, Download
• A150-046 –
  Malicious File Transfer – BEACON, Download
• A100-880 –
  Malicious File Transfer – Bloodhound Ingestor Download, C Sharp
  Executable Variant
• A100-881 – Malicious File Transfer –
  Bloodhound Ingestor Download, C Sharp PowerShell Variant
• A100-882 – Malicious File Transfer – Bloodhound Ingestor
  Download, PowerShell Variant
• A101-037 – Malicious File
  Transfer – MAZE Download, Variant #1
• A101-038 – Malicious
  File Transfer – MAZE Download, Variant #2
• A101-039 –
  Malicious File Transfer – MAZE Download, Variant #3
• A101-040 – Malicious File Transfer – MAZE Download, Variant
  #4
• A101-041 – Malicious File Transfer – MAZE Download,
  Variant #5
• A101-042 – Malicious File Transfer – MAZE
  Download, Variant #6
• A101-043 – Malicious File Transfer –
  MAZE Download, Variant #7
• A101-044 – Malicious File
  Transfer – MAZE Download, Variant #8
• A101-045 – Malicious
  File Transfer – MAZE Download, Variant #9
• A101-034 –
  Malicious File Transfer – MAZE Dropper Download, Variant #1
• A101-035 – Malicious File Transfer – MAZE Dropper Download,
  Variant #2
• A100-885 – Malicious File Transfer – MAZE
  Dropper Download, Variant #4
• A101-036 – Malicious File
  Transfer – MAZE Ransomware, Malicious Macro, PowerShell Script
  Download
• A100-284 – Malicious File Transfer – Mimikatz W/
  Padding (1MB), Download
• A100-886 – Malicious File Transfer
  – Rclone.exe, Download
• A100-484 – Scanning Activity – Nmap
  smb-enum-shares, SMB Share Enumeration

Detecting the Techniques

MITRE ATT&CK Mappings

Mandiant currently tracks three separate clusters of activity
involved in the post-compromise distribution of MAZE ransomware.
Future data collection and analysis efforts may reveal additional
groups involved in intrusion activity supporting MAZE operations, or
may instead allow us to collapse some of these groups into larger
clusters. It should also be noted that ‘initial access’ phase
techniques have been included in these mappings, though in some cases
this access may have been provided by a separate threat actor(s).

MAZE Group 1 MITRE ATT&CK Mapping

MAZE Group 2 MITRE ATT&CK Mapping

MAZE Group 3 MITRE ATT&CK Mapping (FIN6)

Example Commands Observed in MAZE Ransomware Incidents

PowerShell reconnaissance script used to
enumerate directories

Decoded FTP upload PowerShell script

Decoded FTP upload PowerShell script

Excerpt from windows.bat kill script

Example commands from MAZE distribution scripts

Example MAZE distribution script

Indicators of Compromise

Mandiant Threat Intelligence will host an exclusive webinar on
Thursday, May 21, 2020, at 8 a.m. PT / 11 a.m. ET to provide updated
insight and information into the MAZE ransomware threat, and to answer
questions from attendees. Register
today to reserve your spot.
